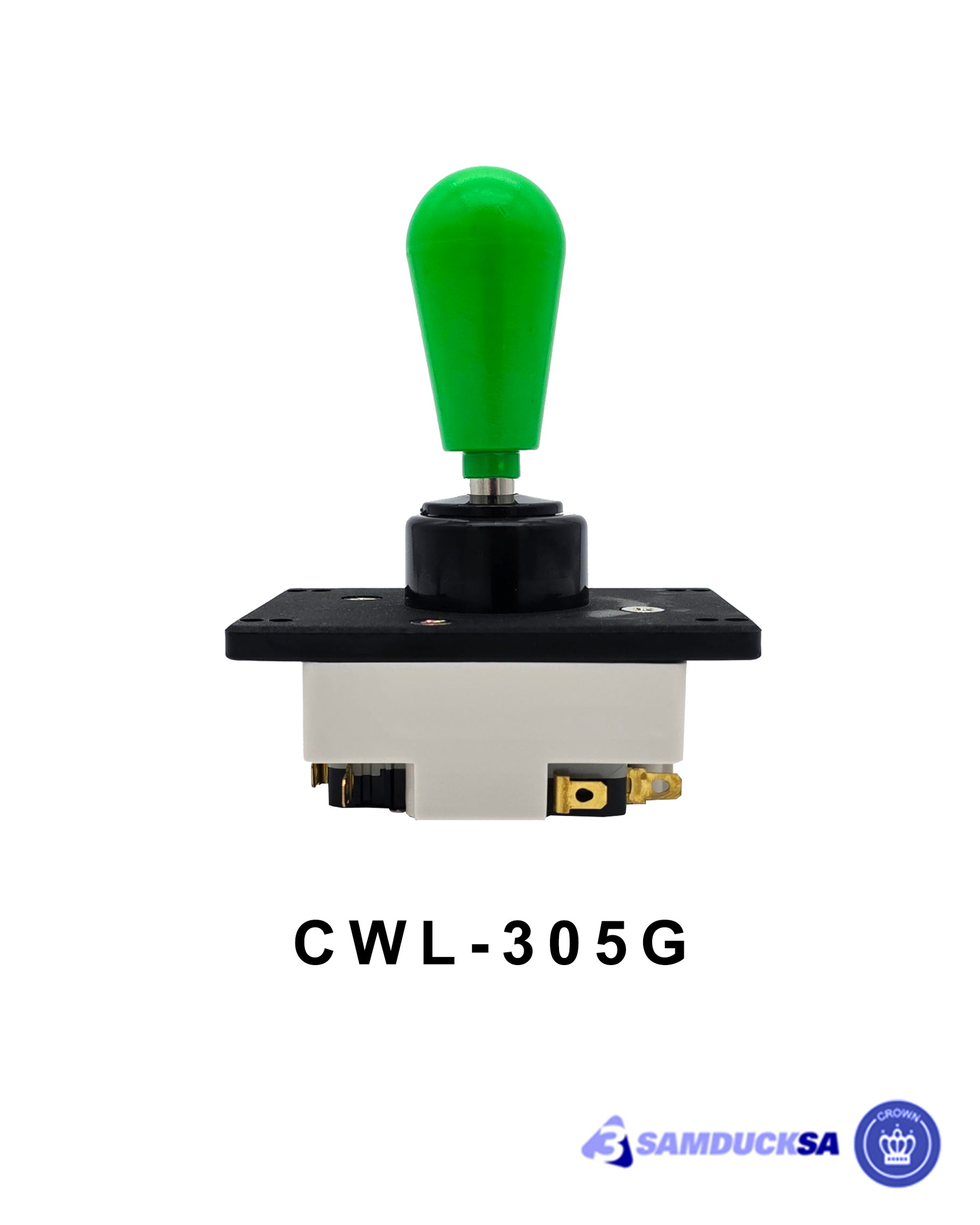

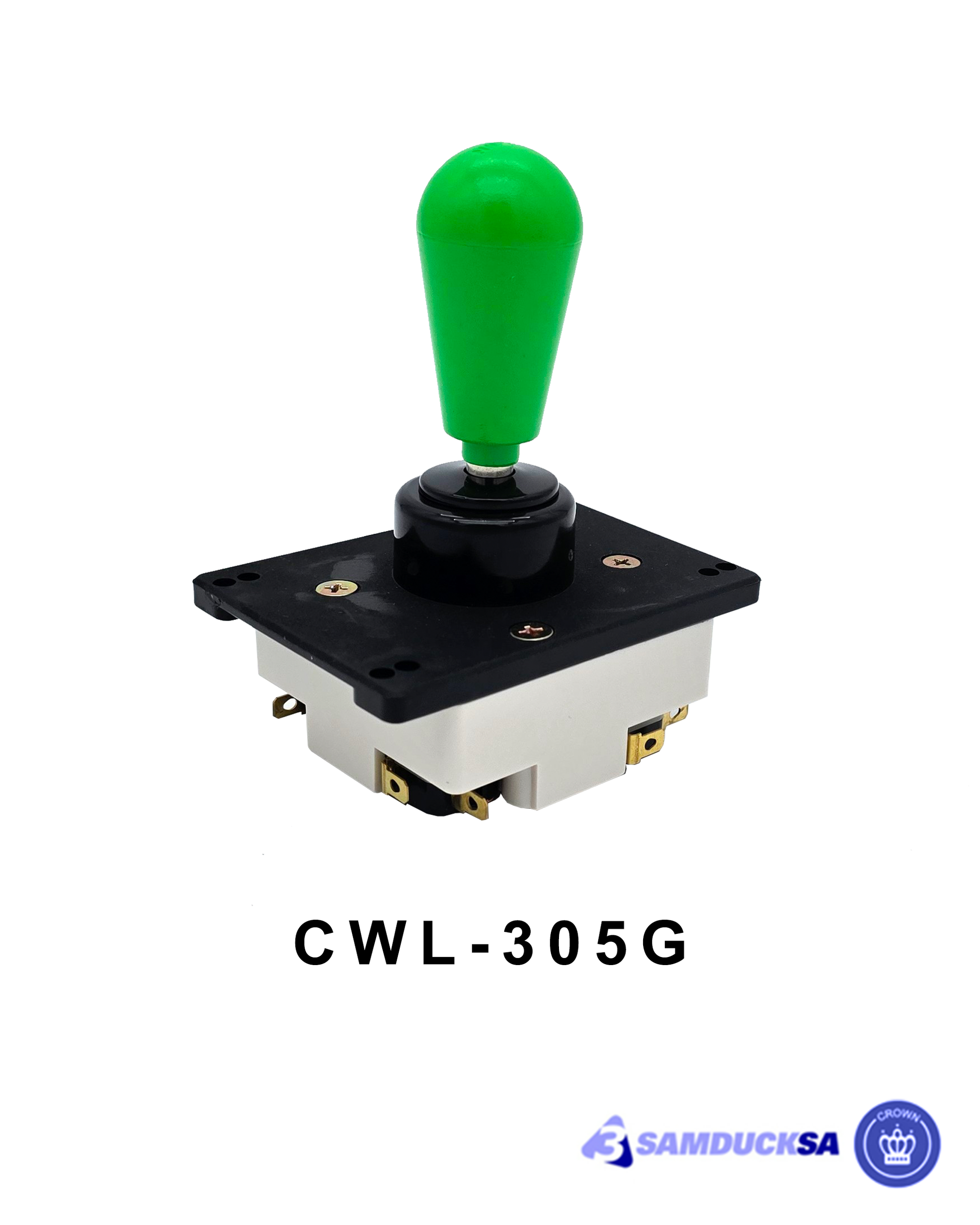

Samducksa (Crown) 305 - Green

The Samducksa (Crown) CWL-305G is one of the oldest levers in Samducksa's inventory that is still currently produced and sold. However, this product has been sold almost exclusively to arcades and arcade suppliers for the recent past. IST Mall sold the 305 for many years and provided it as a standard option in the Makestick Series Fightsticks. However, this lever utilizes a unique integrated mounting plate that is not compatible with most modern fightstick cases. Therefore you will need a fightstick that has the traditional korean lever mounting holes for this lever to fit into your fightstick.

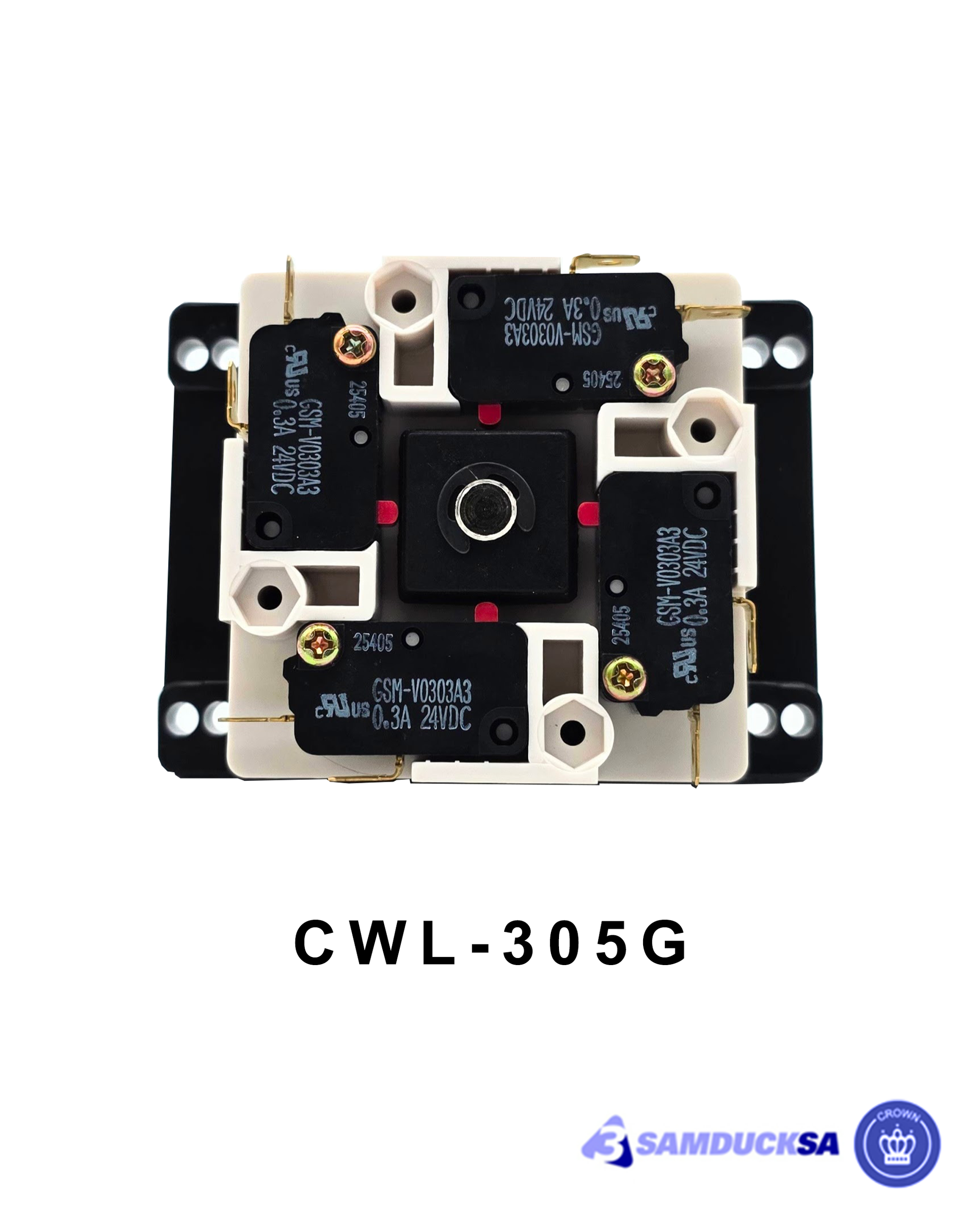

The 305 is a strange combination of components drawing from various lever designs. The lever uses a traditional Korean full collar circle top, but the actuator is square like that of an American/Euro Lever. More interesting is that the opening at the bottom of the lever base is not a truncated square. Rather, it is also circular. So while this lever uses a square actuator, the guide is a true circle. You will not feel corners for diagonals on this lever unless you dig with pressure to make the actuator contact the switch square. Unlike other Korean Levers, the 305 uses microswtiches with no hinge arm. The lever will come with shaft spacers installed to reduce wobble.

THIS IS A STANDARD 305 LEVER, NO MODIFICATIONS.

!!! CHECK YOUR FIGHTSTICK FOR TRADITIONAL KOREAN LEVER MOUNTING HOLES. THIS WILL NOT FIT IN STANDARD JAPANESE CONFIGURATION MOUNTING BRACKETS !!!

!!! ALL MAKAI ARCADE LEVERS COME WITH A SHAFT SPACER KIT TO MANAGE SPIN/WOBBLE !!!

Specifications:

• Classic Green Arcade Style Integrated Bat Top Shaft
• 9mm Steel Shaft
• Full Collar Circle Integrated Top Housing/Mounting
• 35A Standard Medium-Hard Tension Silicone
• Square Actuator Head
• Gersung GSM-V0303A3 Microswitches
• Standard E Clip Shaft
