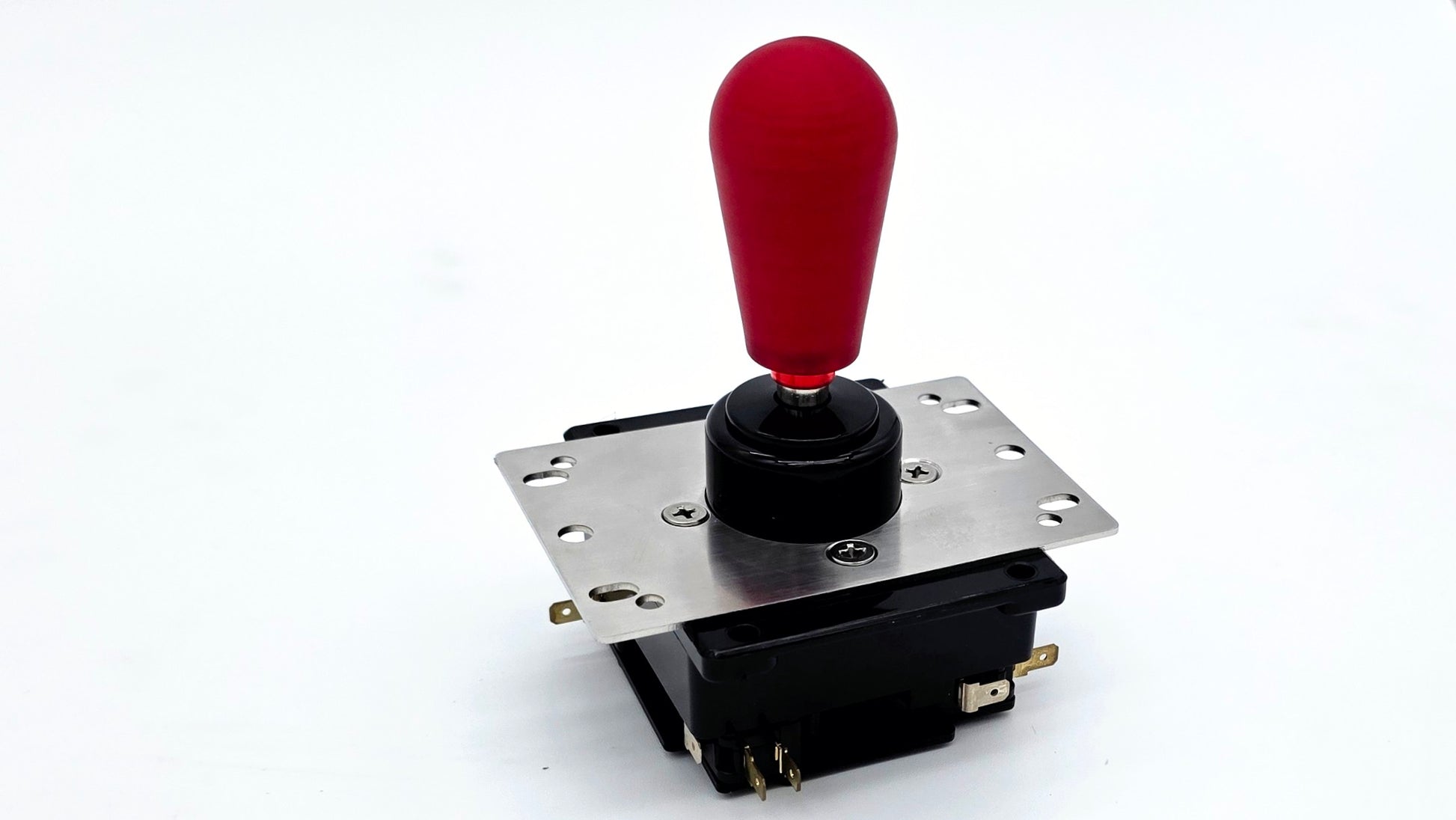

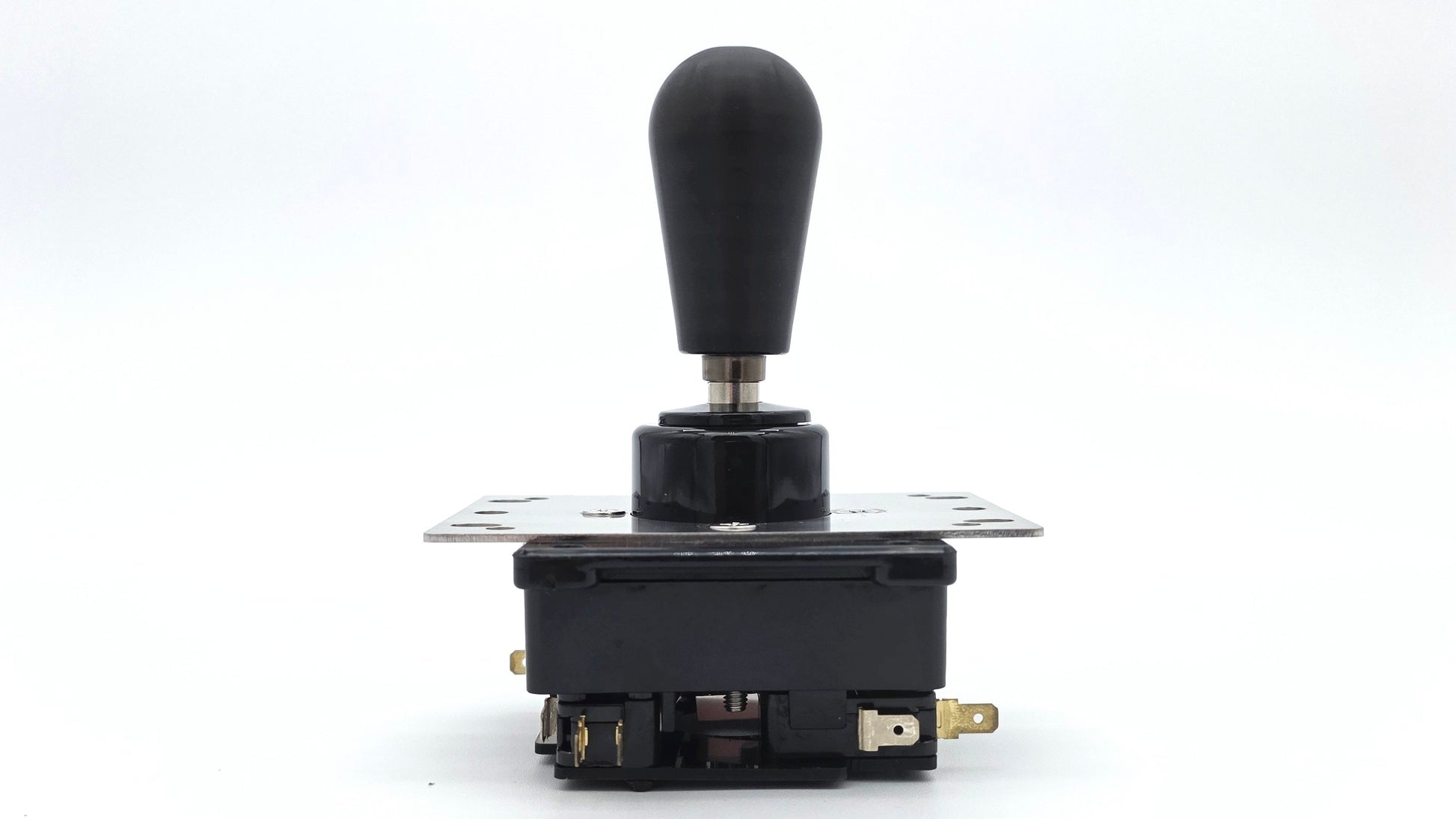

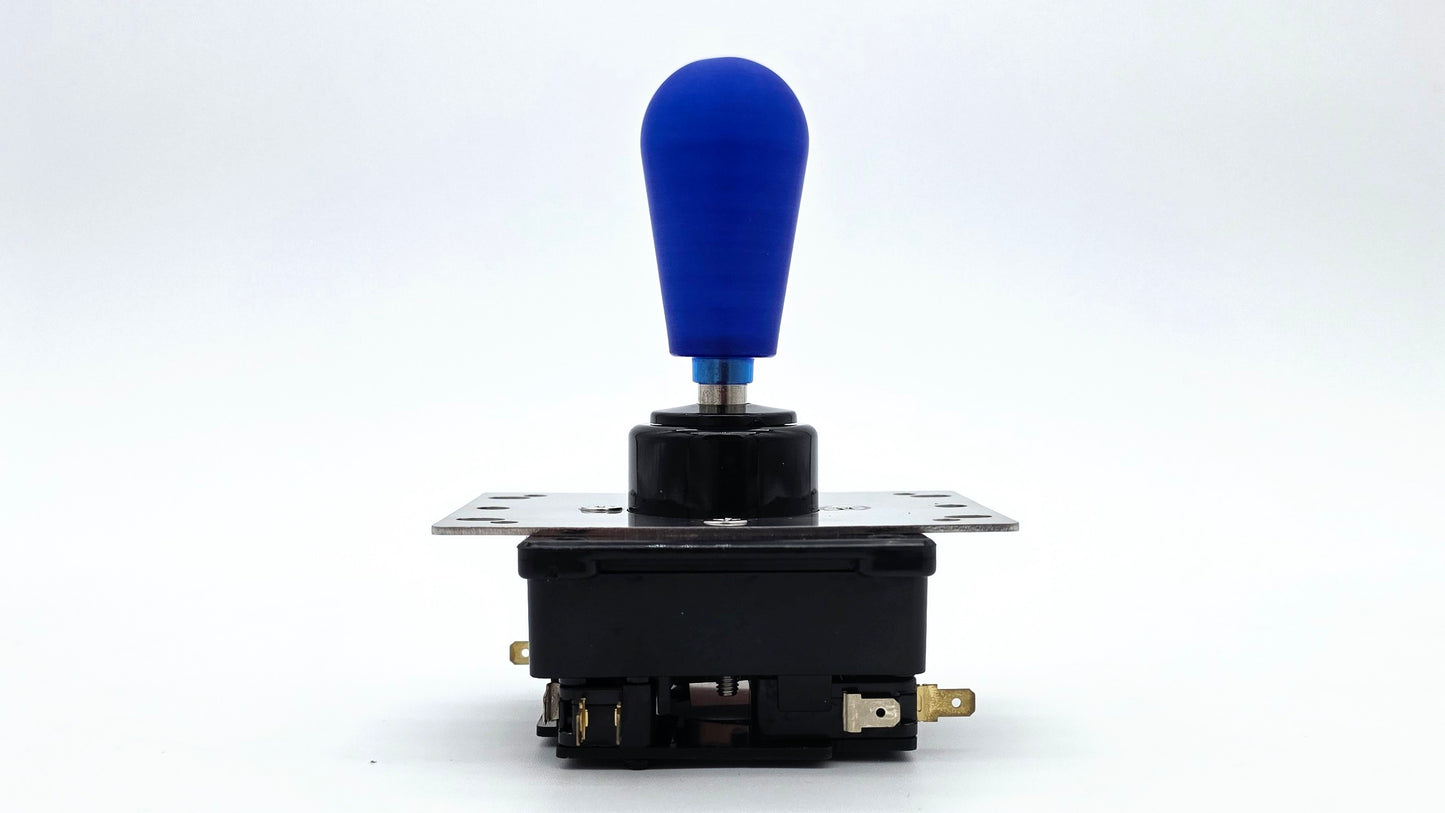

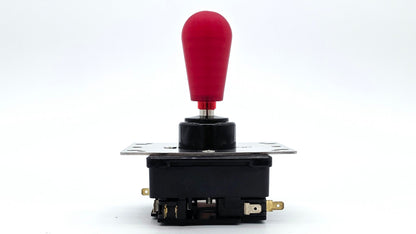

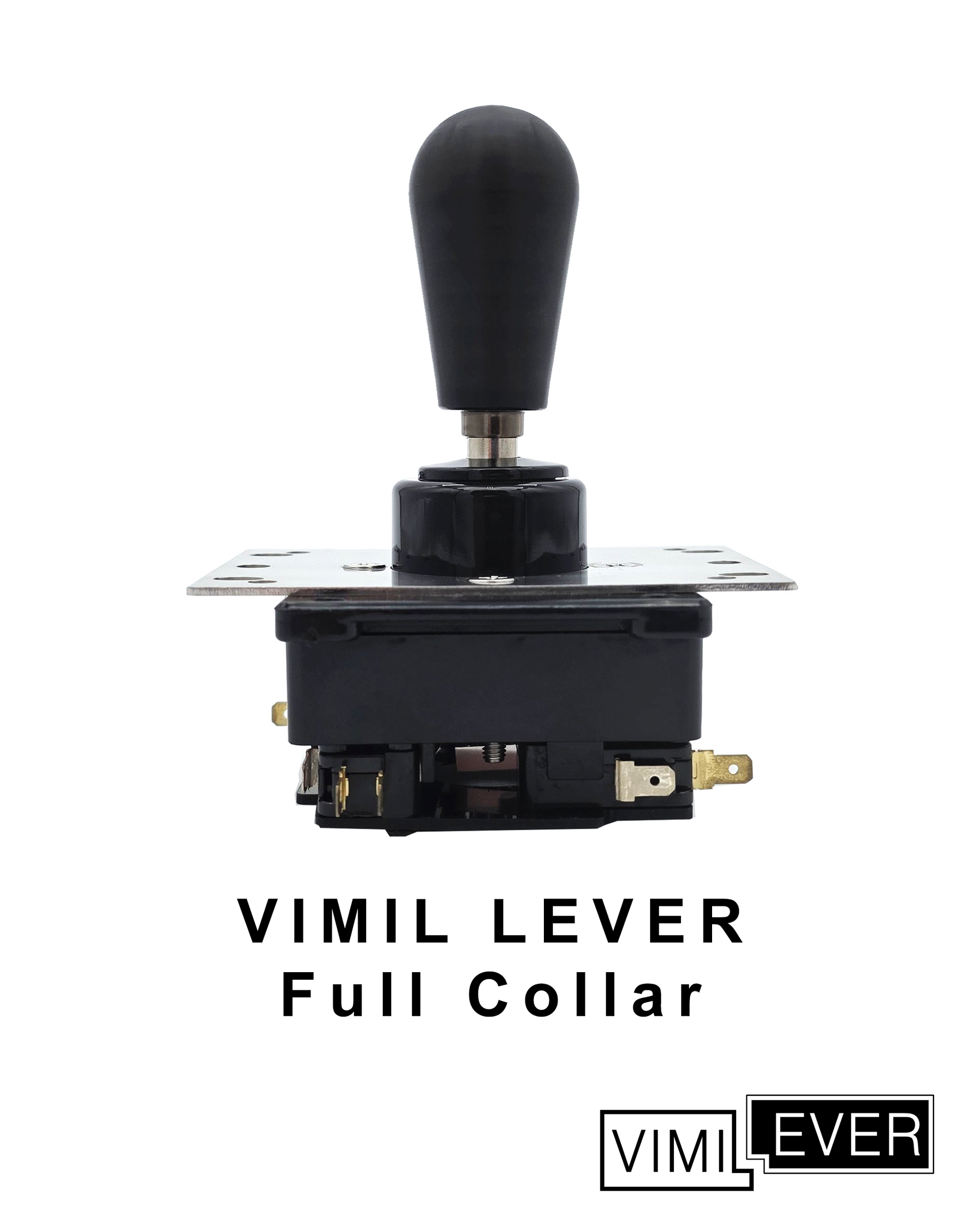

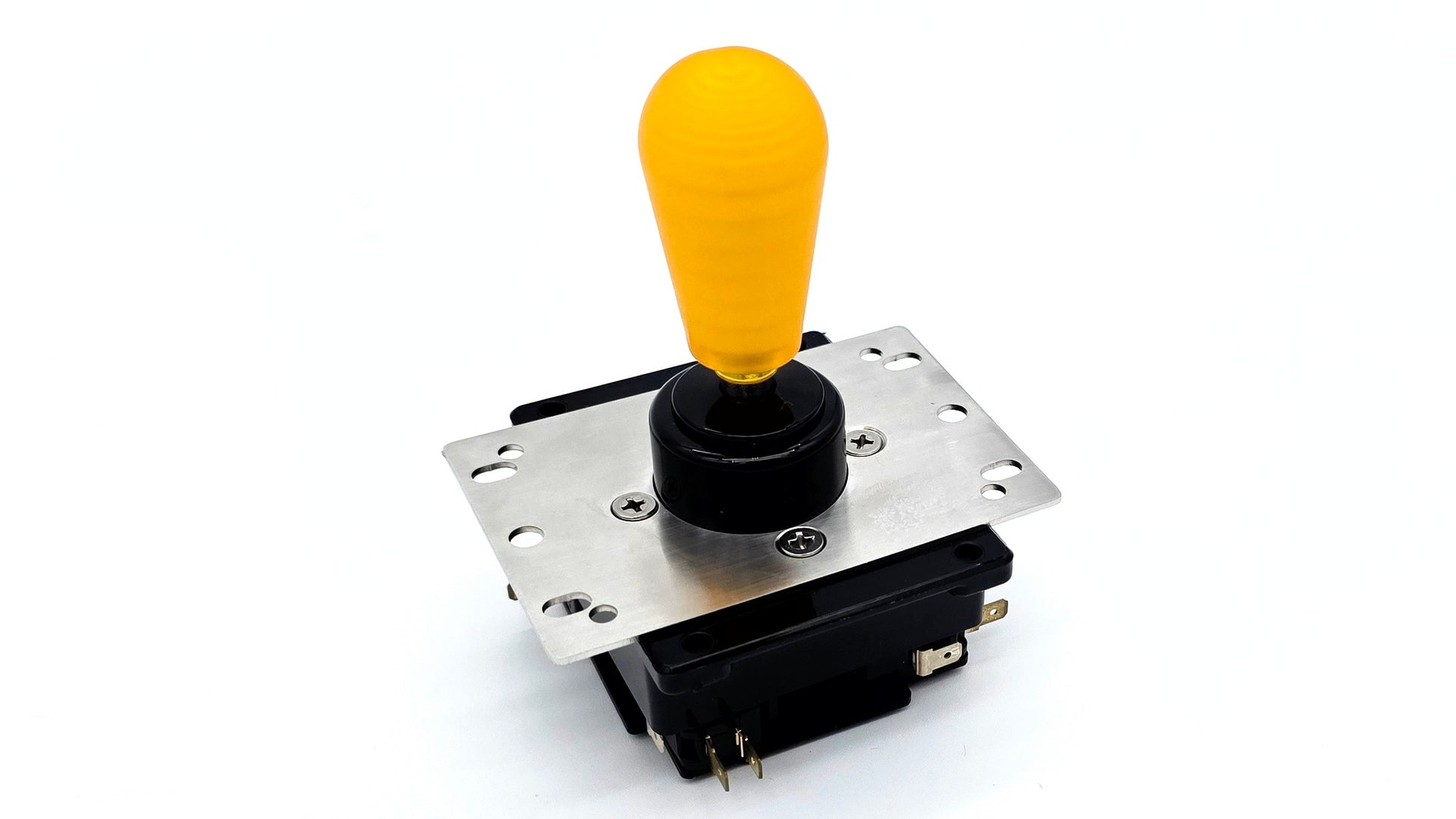

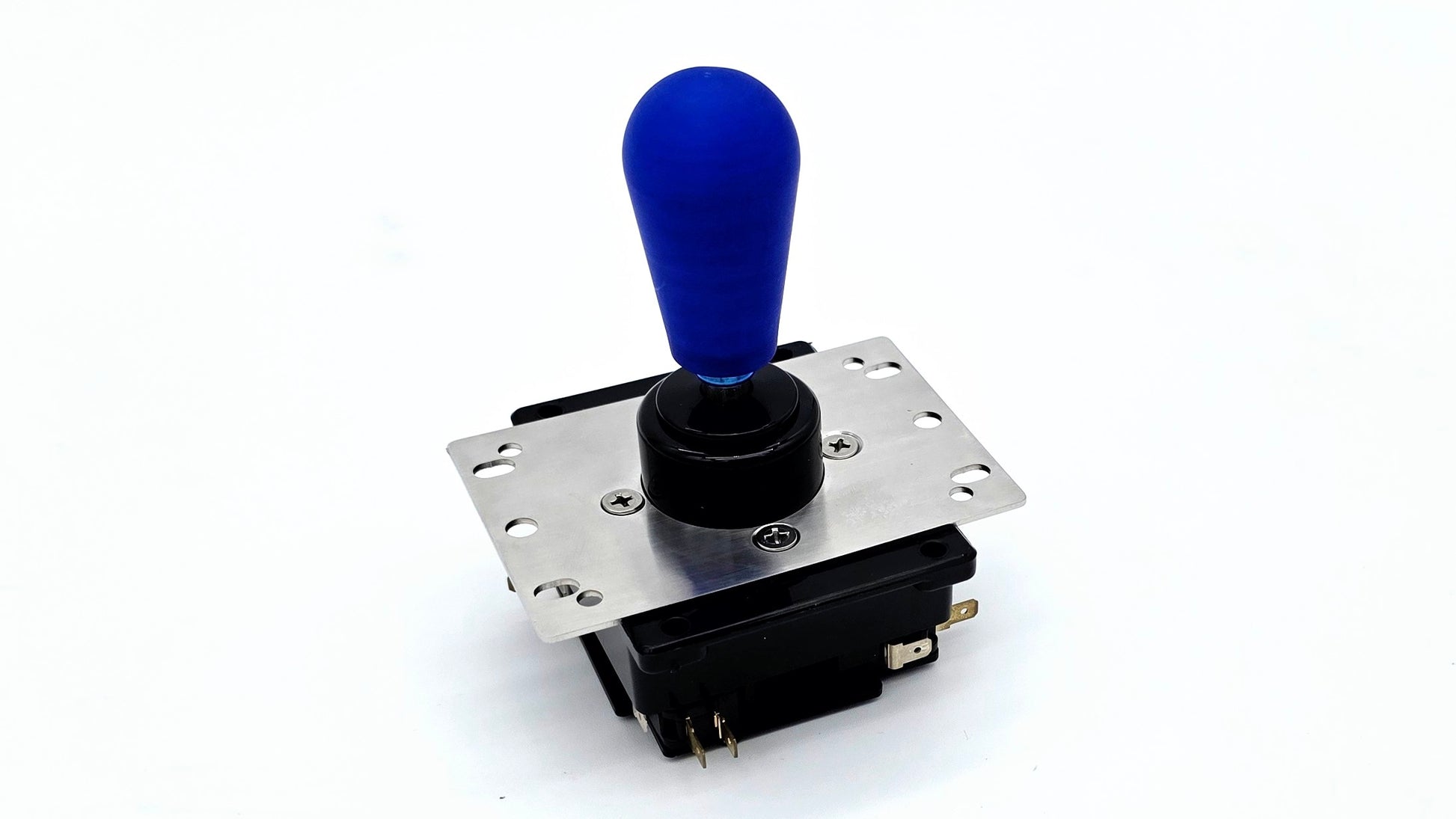

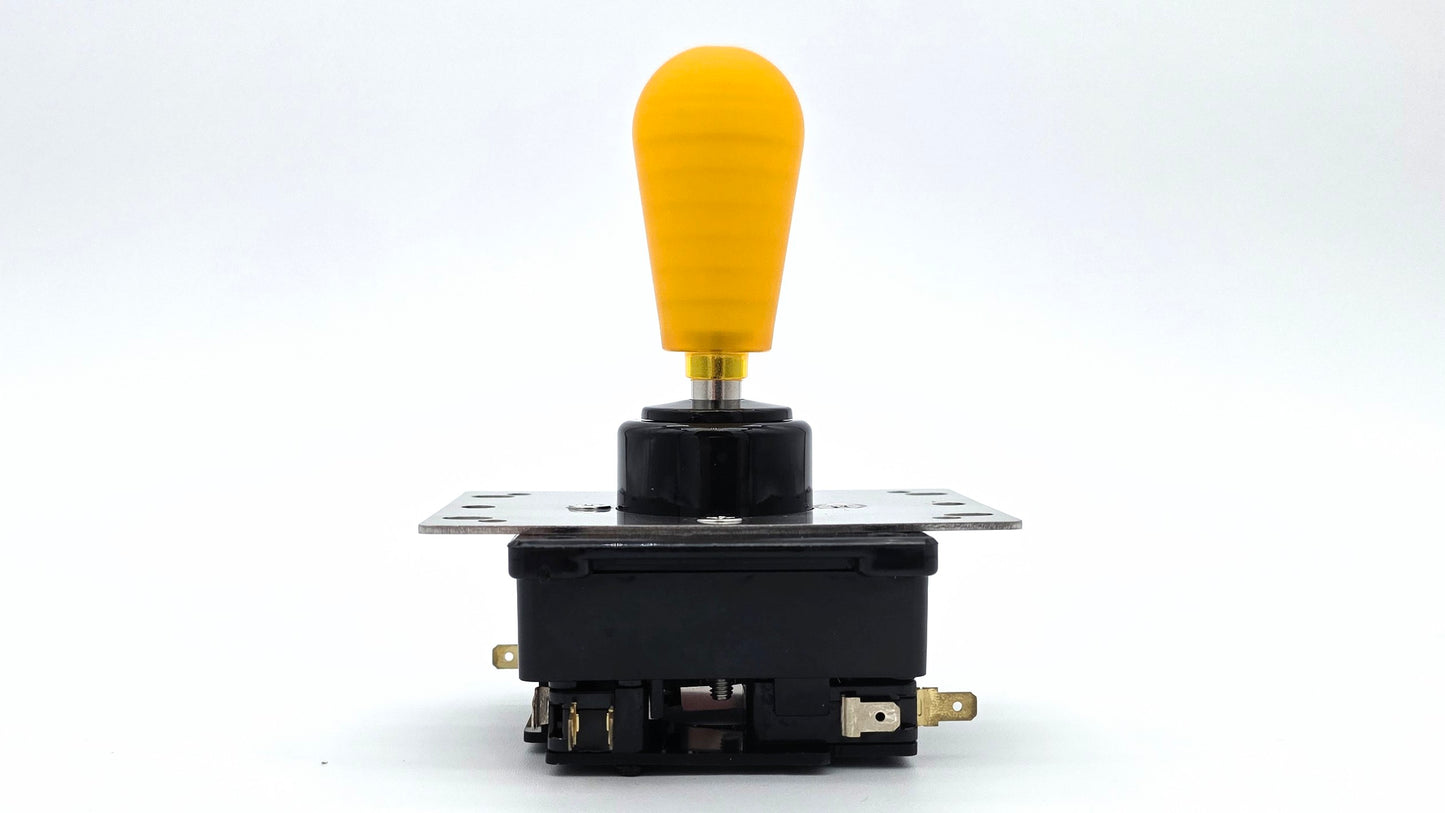

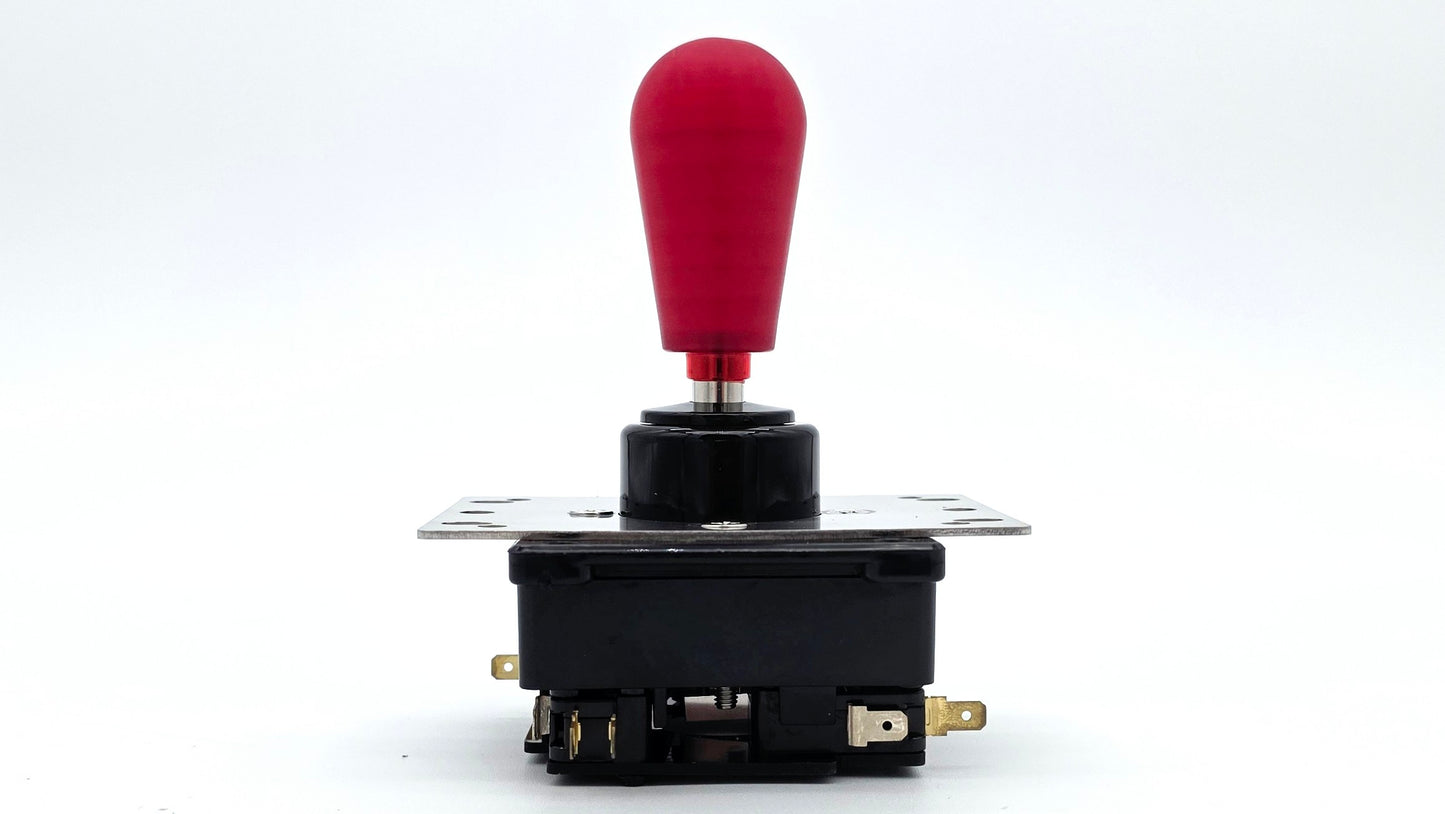

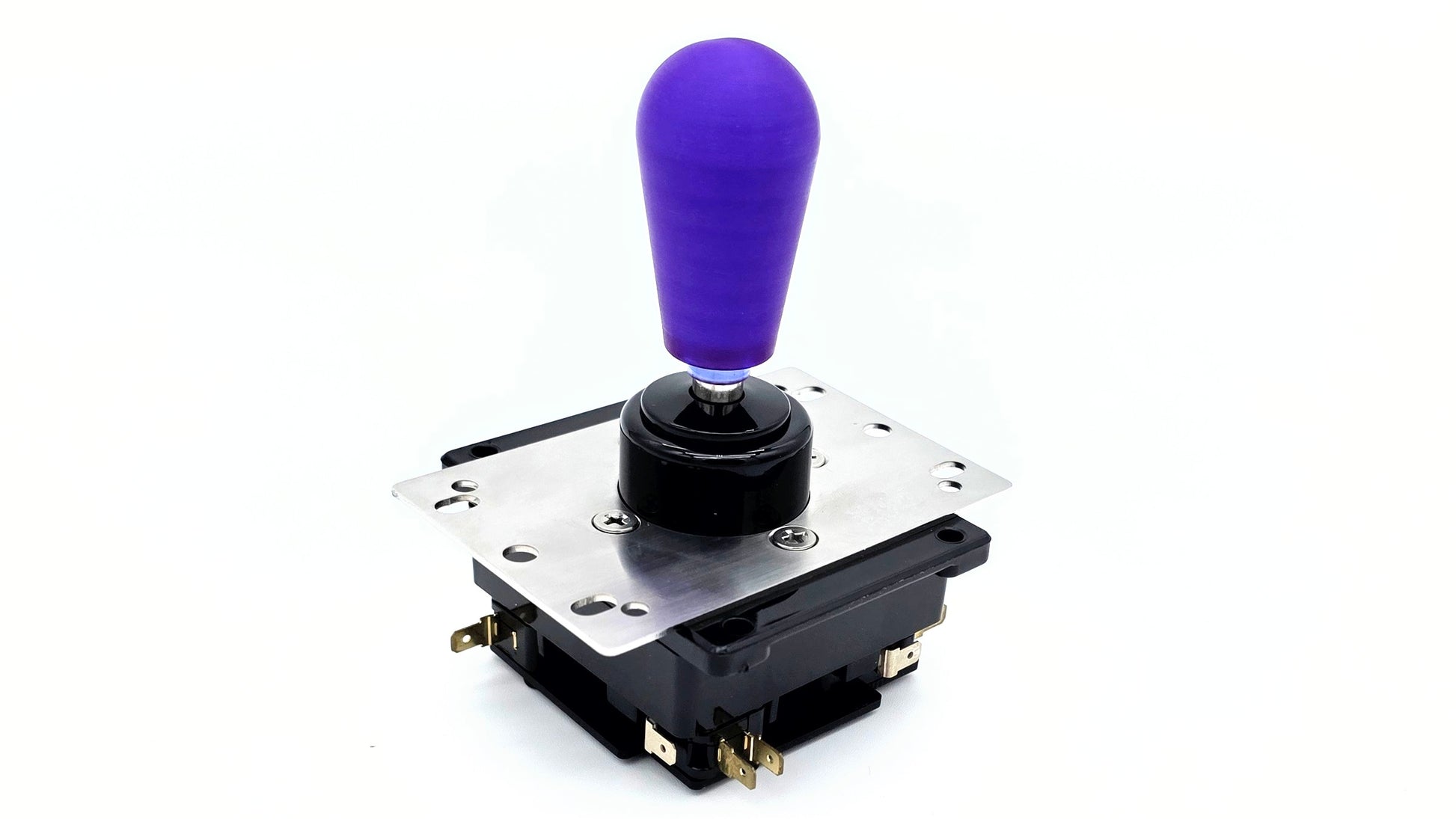

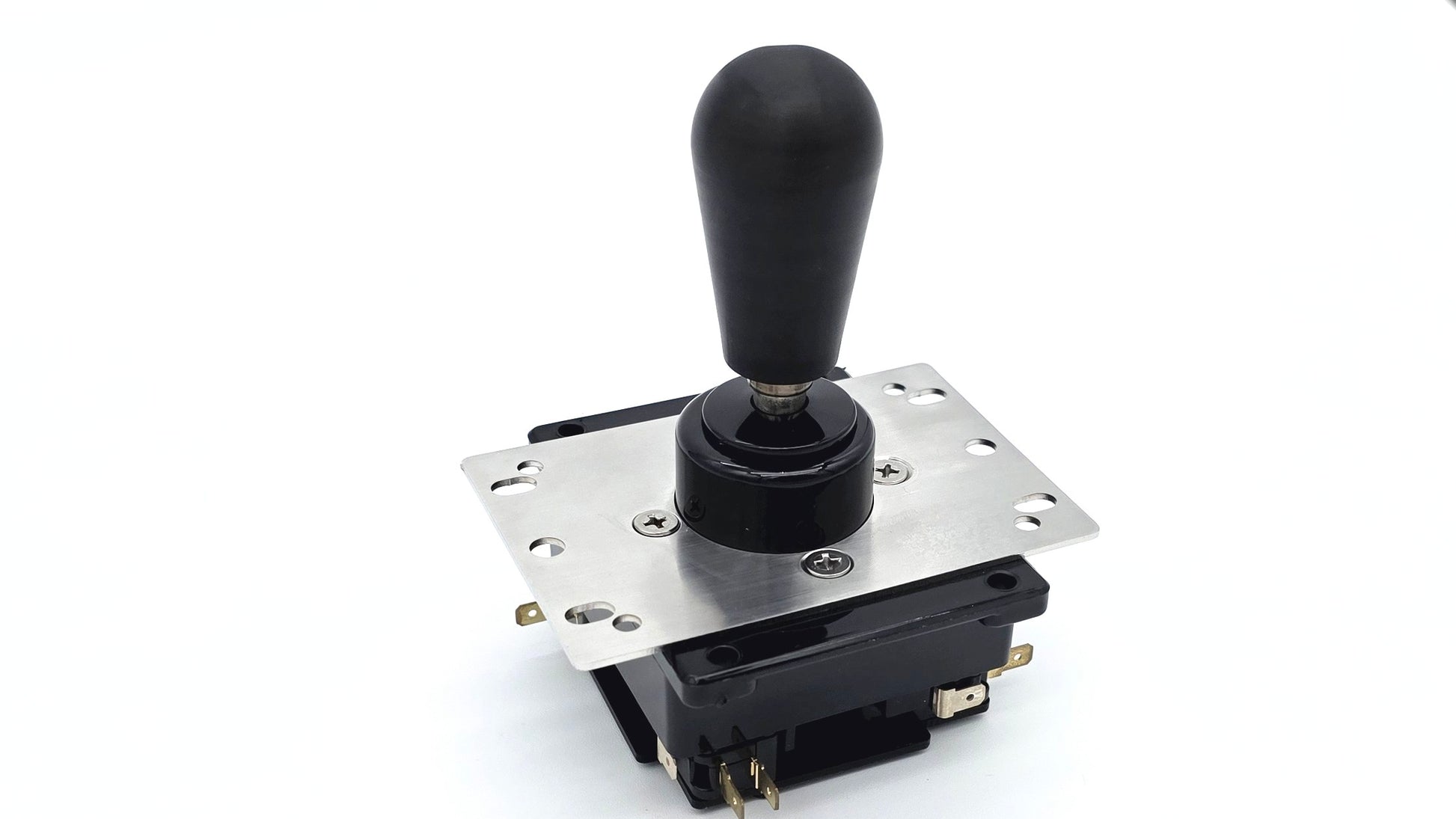

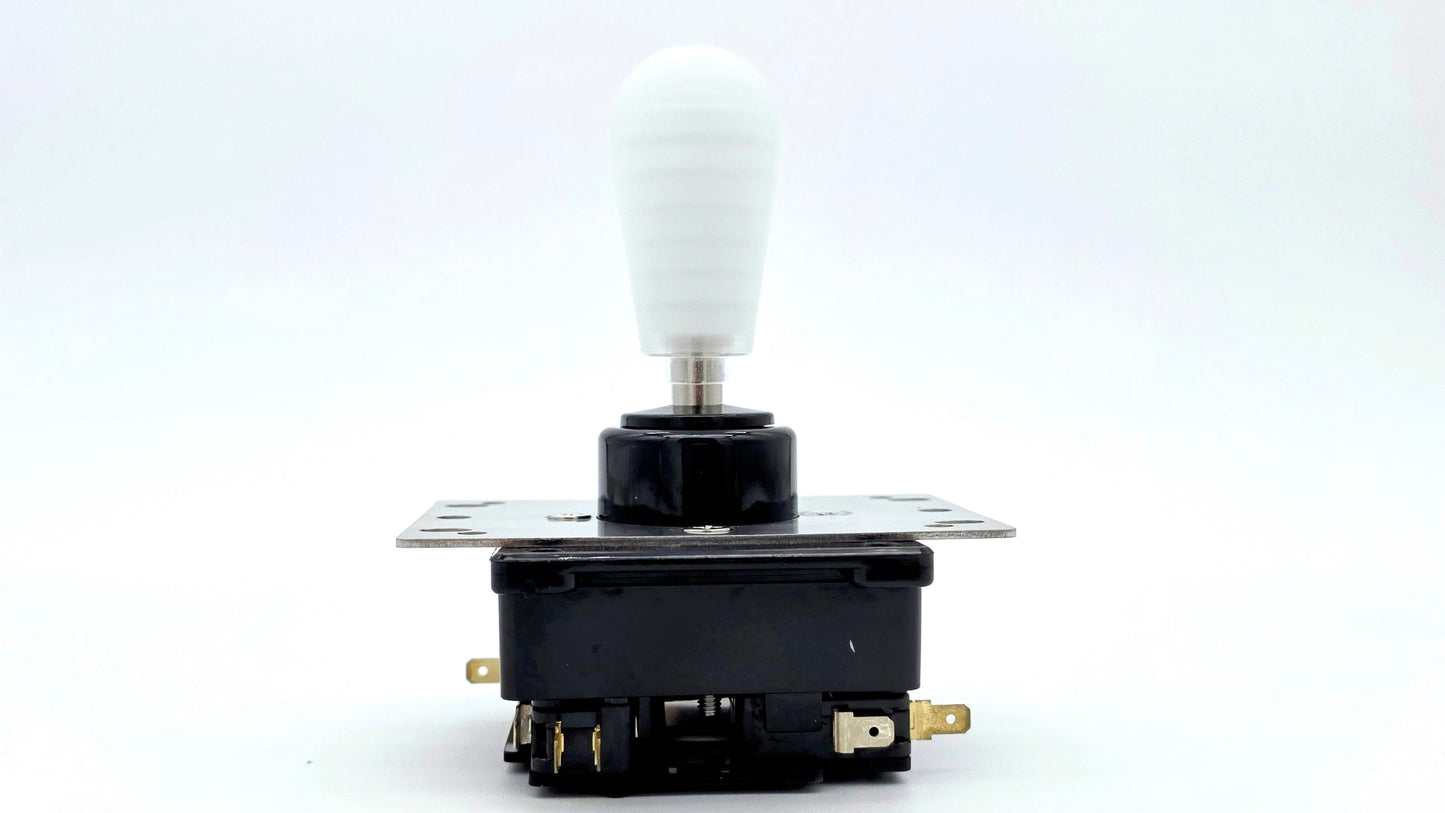

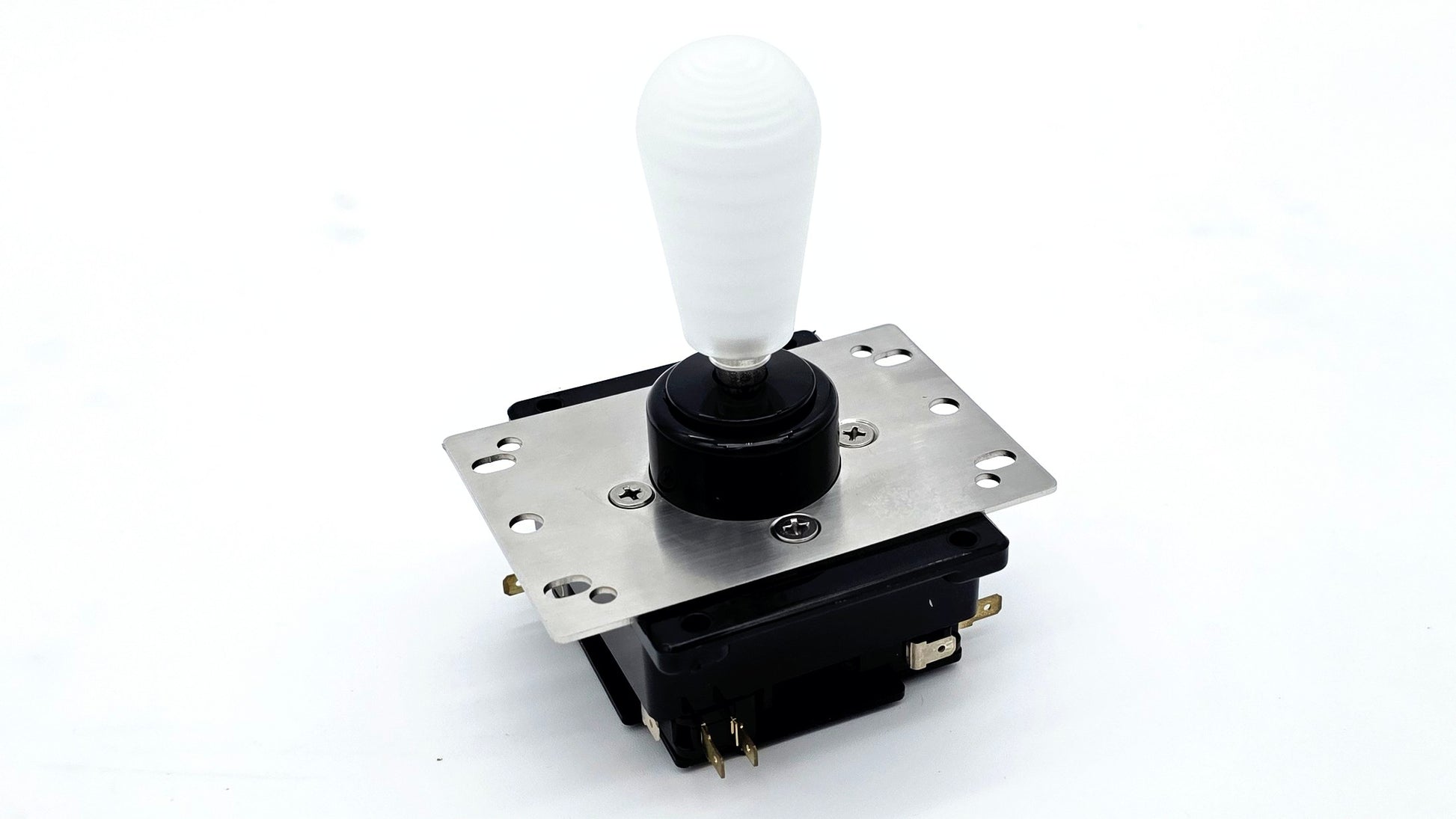

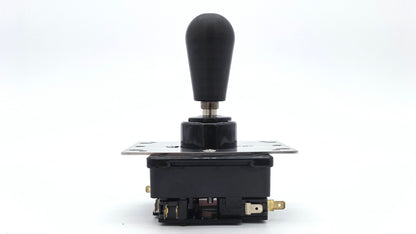

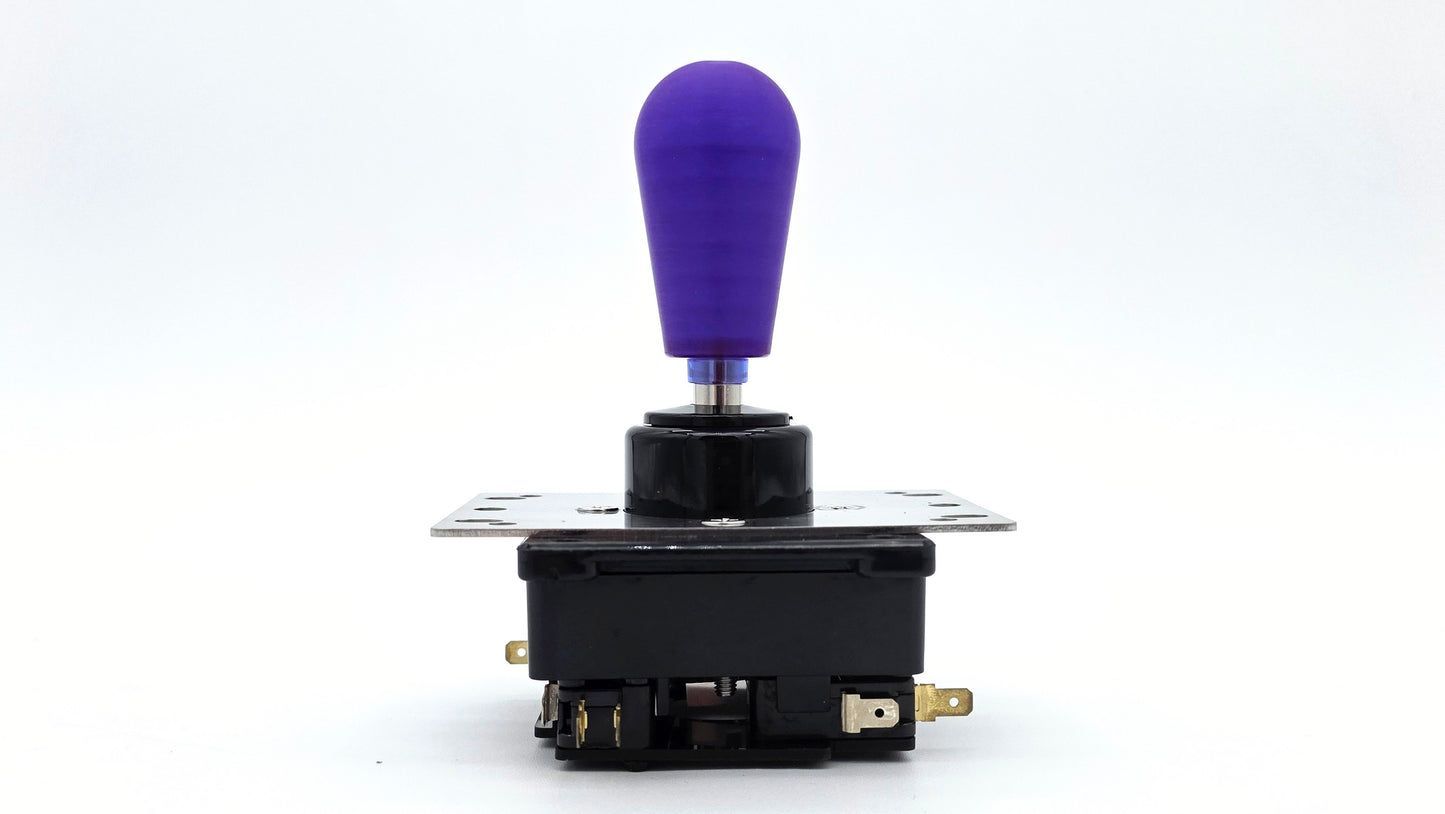

VIMIL Lever Full Collar - Choose Color

The VIMIL Lever (비밀 레버) is made by the lever designer from South Korea known as VIMIL, which translates to "secret" in English (not to be confused with the Tekken player 'secret'). The VIMIL Lever is based on the 309 lever body, and utilizes parts compatible with Samducksa (Crown) levers. VIMIL Bat Tops are ALWAYS fixed/integrated to the shaft to remove the possibility of top coming loose during gameplay. The collar for both full and mid collar has a wider opening than a 309 lever. This allows for moderate input range and precise diagonals that can be felt at each corner. Each Bat Top is frosted/matte/sanded to create a preferred grip feel.

The VIMIL Core (bobbin) is unique, as it provides more tension on the top and bottom of the grommet to ensure a secure fit and reduce any core rotation and provide more premium/smooth feel during play. The tolerance for the shaft is also very tight, reducing any chance for shaft spin. Additionally, each core has a 'o' marked to identify the UP input direction. The core has a very slight degree of angle that places the actuator head slightly further away from UP input switch. The direction is designated on the core and has an matching 'o' hole on the switch plate cover to reflect the "UP" direction. When assembled correctly, the actuator head will touch LEFT, RIGHT, and DOWN inputs, but the UP input will have a slight space between the arm hinge and the actuator head. This provides moderate input actuation for Left, Down, and Right inputs, while creating a smaller input zone for UP to reduce accidental inputs in Tekken gameplay. For 2D fighters like Street Fighter, you may want to opt for the 16.2mm actuator so that the UP input is moderately spaced, while LEFT, DOWN, and RIGHT inputs are quick to actuate.

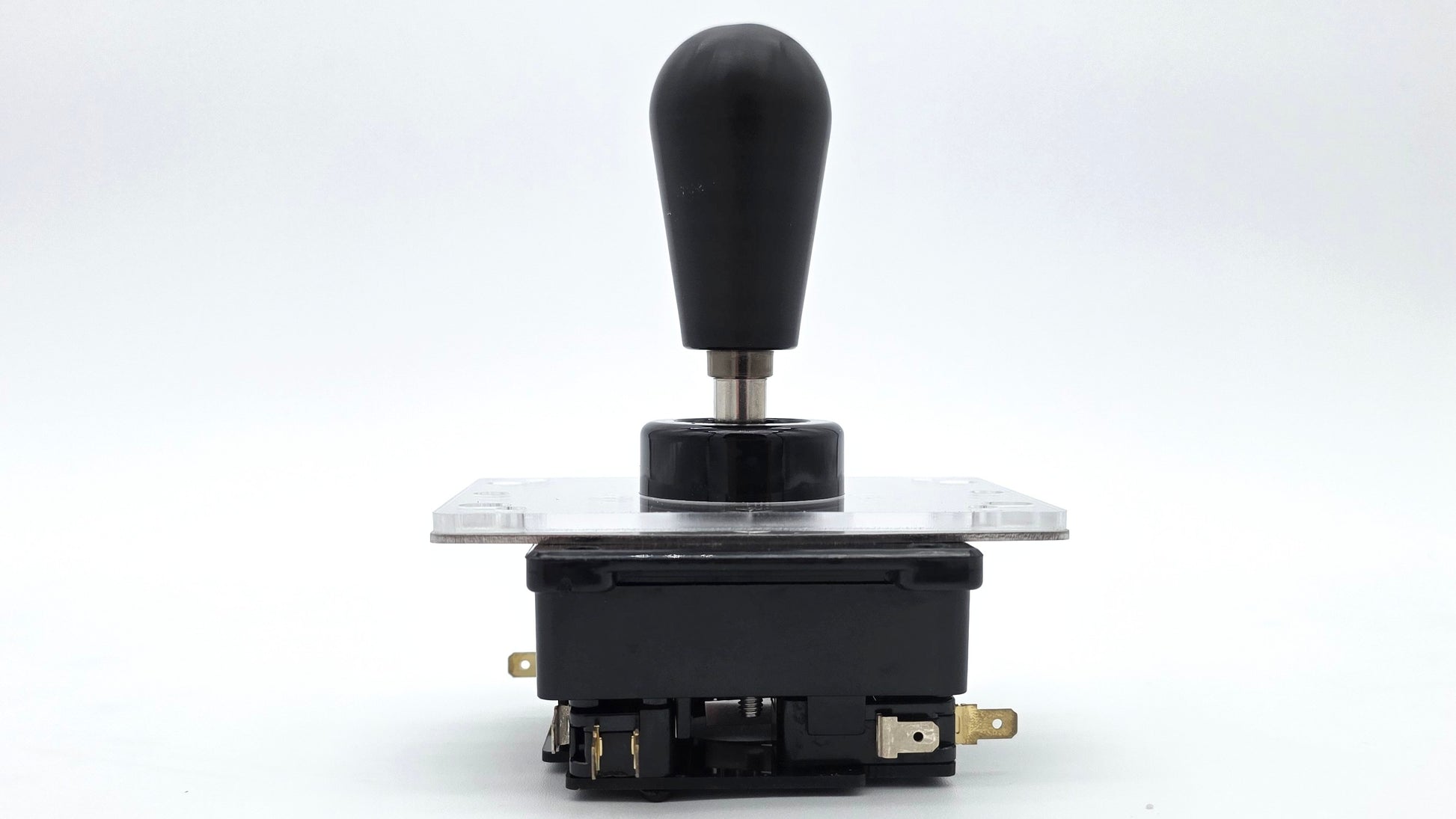

VIMIL Levers utilize OMRON Microswitches, machined actuator heads, and a switch cover plate to equalize switch mounting. Other features include Stainless steel hardware and mounting plate. The lever is designed to be installed with a 3mm mounting spacer for proper height when fixed to a fighstick panel.

THIS LEVER IS FULL COLLAR AND WILL REQUIRE A FIGHTSTICK WITH A 35MM LEVER HOLE TO BE INSTALLED.

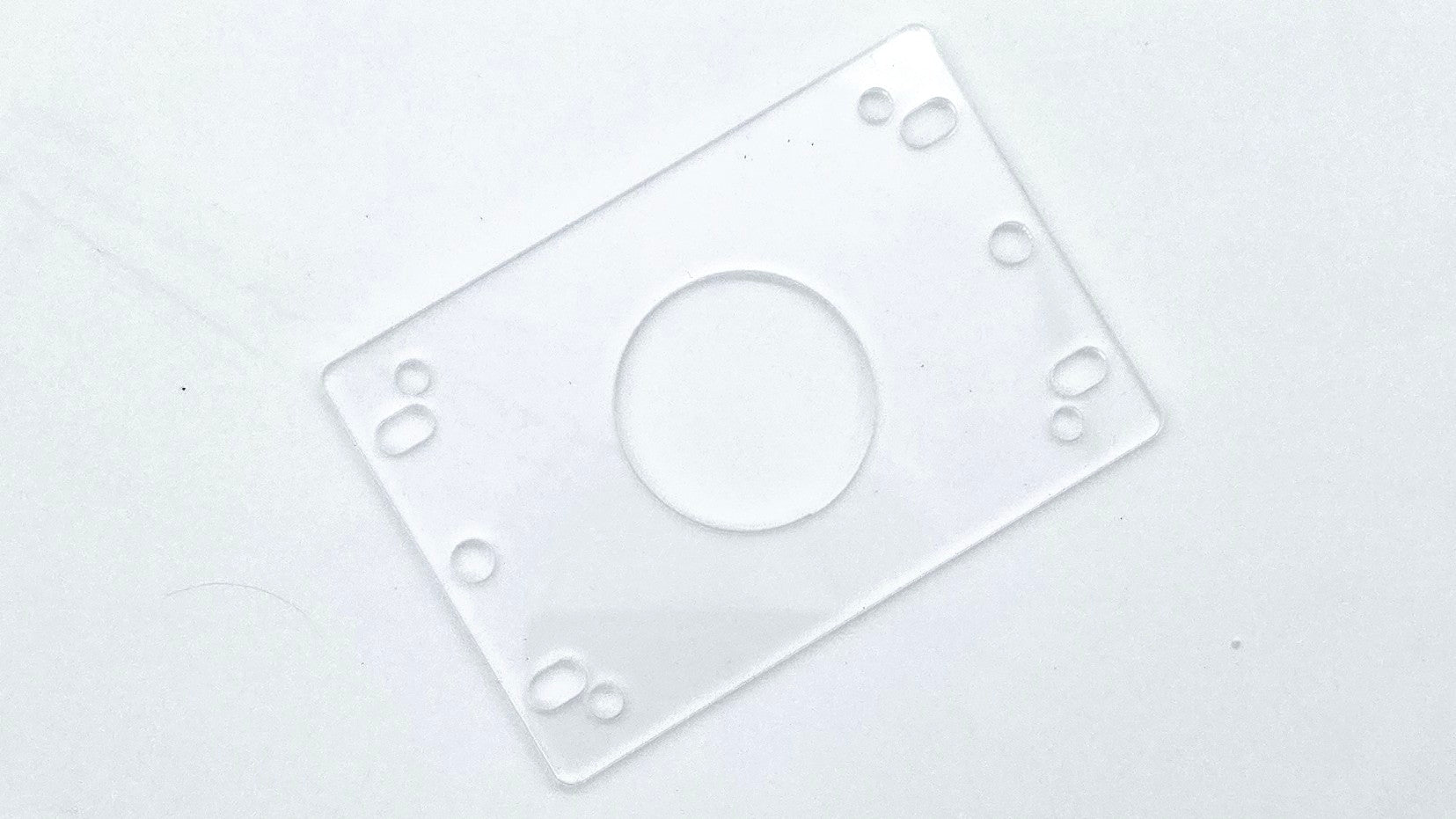

ALL VIMIL LEVERS INCLUDE A 3MM MOUNTING SPACER.

ALL MAKAI ARCADE LEVERS COME WITH A SHAFT SPACER KIT TO MANAGE SPIN/WOBBLE
!! Shaft spacers are not needed for this lever. However, the spacers are still included in case repeated shaft removal results in shaft spin over time. !!

*Includes VIMIL Sticker when available.*

Specifications:

Frosted All-In-One Integrated Bat Top Shaft
9mm Stainless Steel Shaft
VIMIL Core (14mm Diameter) (NO SPIN)
35A Tension Standard Medium-High Tension Silicone Grommet (other options available purchased separately)
Medium-Long Throw Collar
15.8mm Acetal/POM Actuator Head (other options available purchased separately)

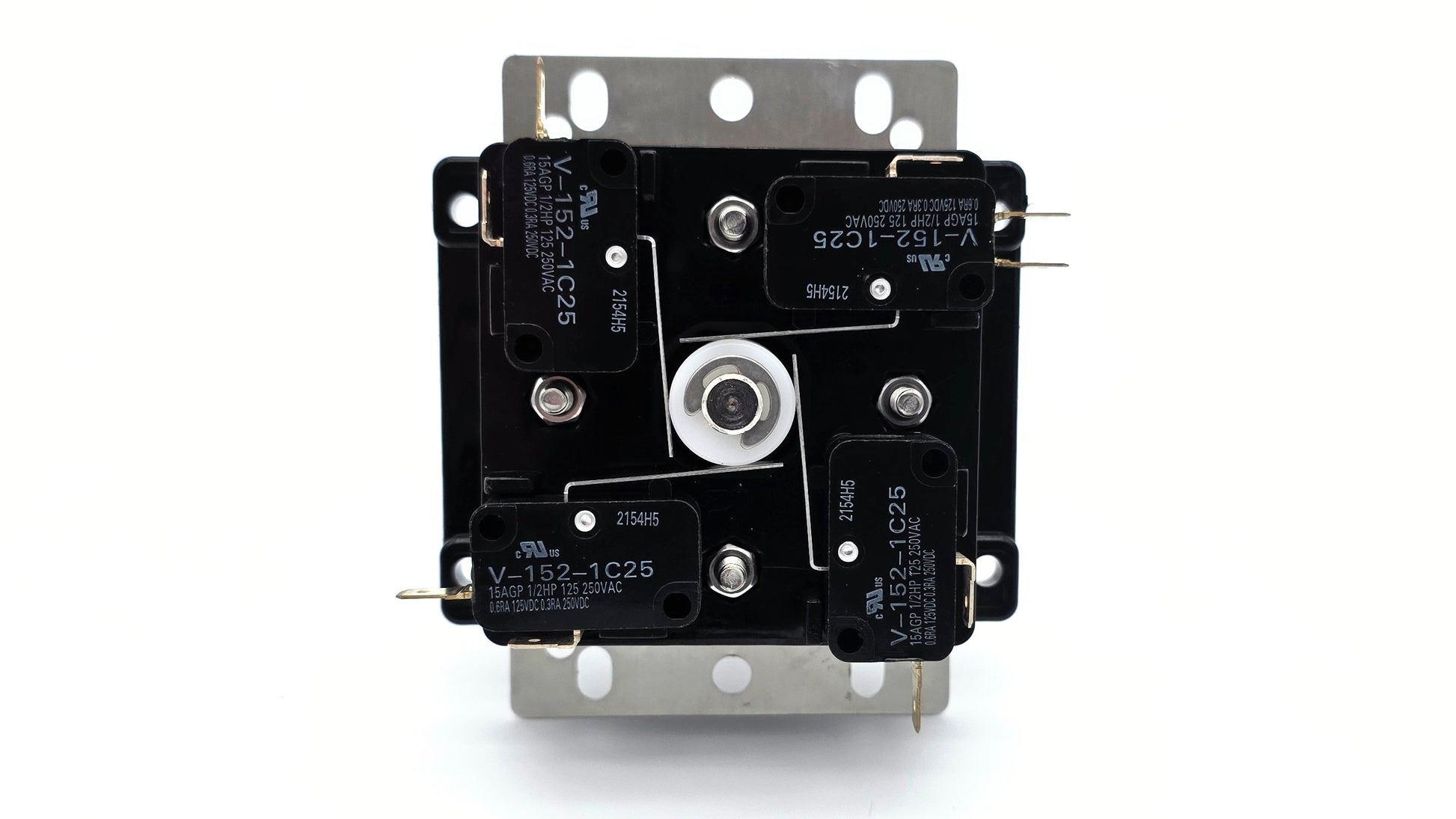

OMRON V-152-1C25 Microswitches

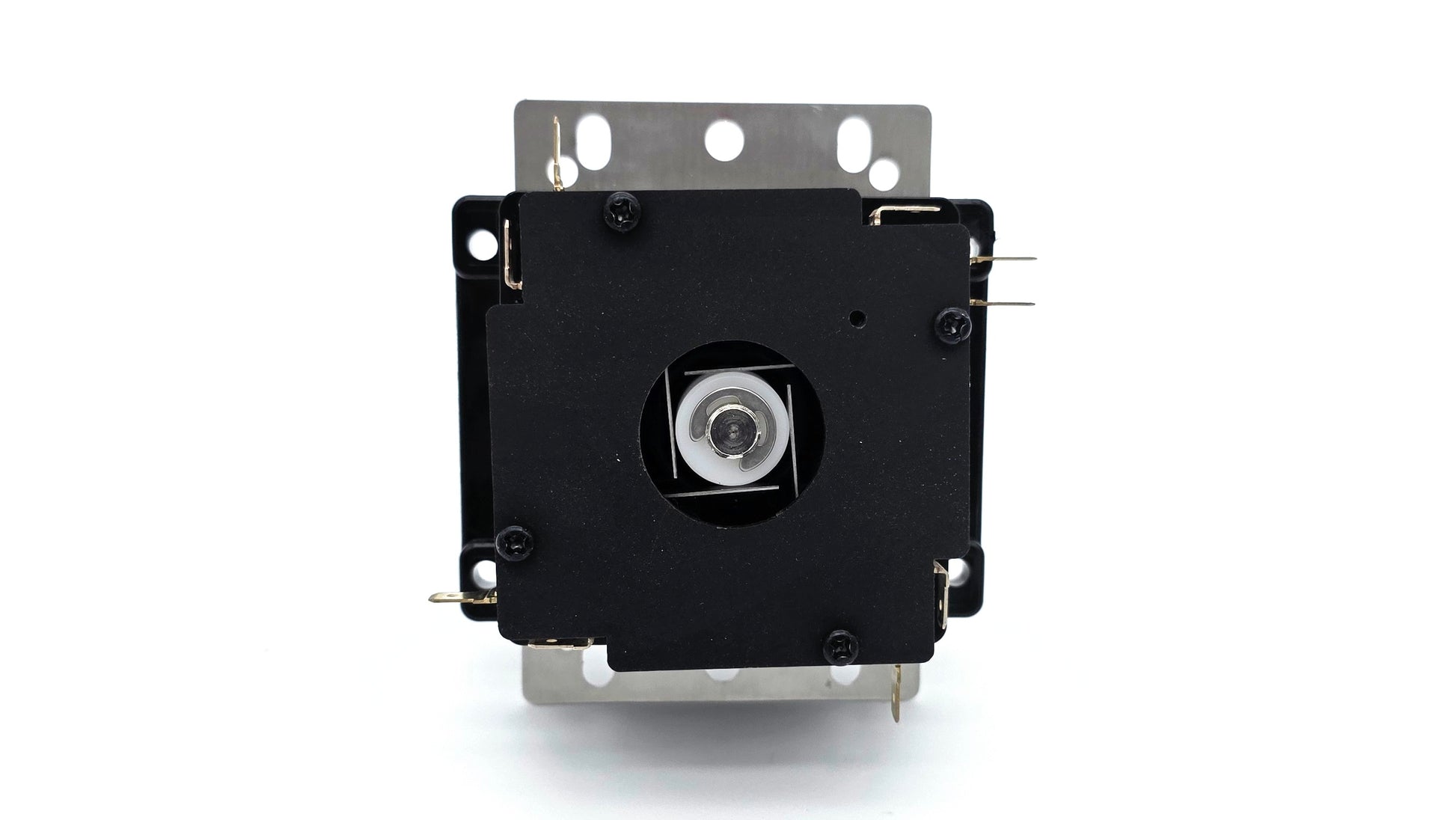

Switch Cover Plate

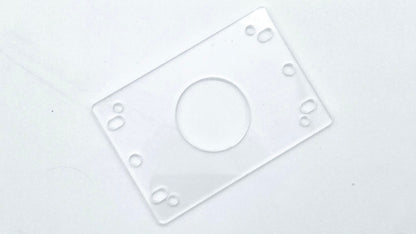

3mm Acrylic Mounting Spacer
